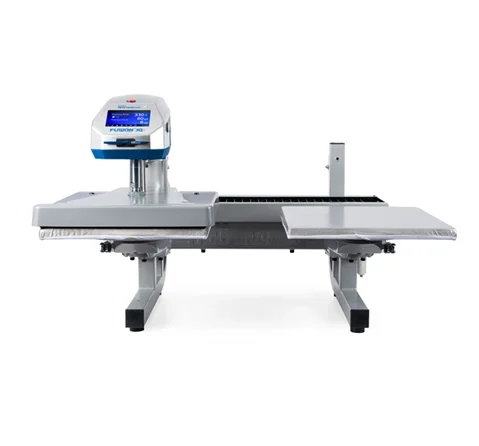

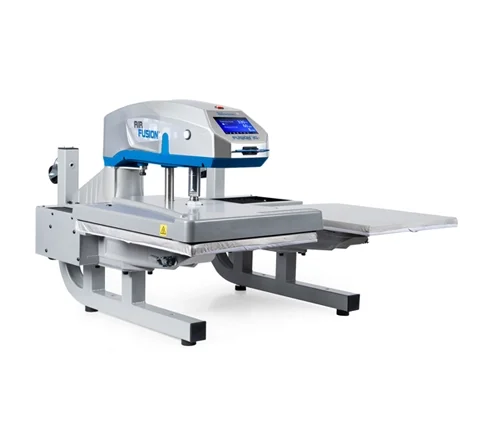

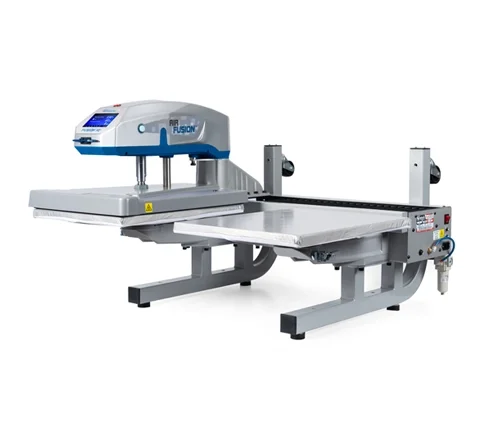

Hotronix® Dual Air FUSION IQ® Heat Press

The fastest, most efficient heat press available.

The Dual Air FUSION IQ heat press is the perfect heat printing solution for high volume custom apparel decorators. This heat press comes with 2 heat printing stations to optimize productivity.

Get the next garment ready on one platen while the other platen is being pressed.

With the Hotronix Online Portal, you can manage users, generate usage reports, and troubleshoot issues. A controller with a large, high resolution touch screen makes it easy to modify settings and save recipes.

The dual heat press stations can be set up to 4 different time and pressure settings, so each station is used for a specific type of transfer or a specific part of the heat printing process.

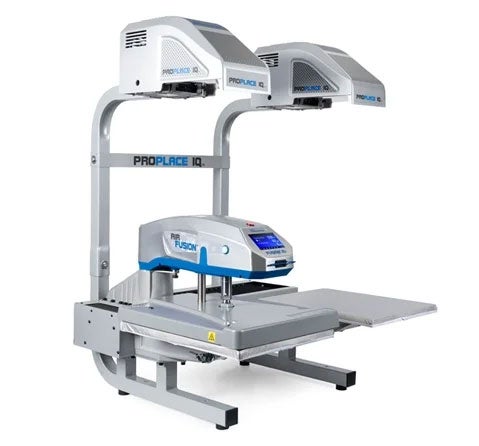

Dual Air Fusion ProPlace IQ™ - Now Available!

Be even more efficient with the new Dual Air Fusion ProPlace IQ™.

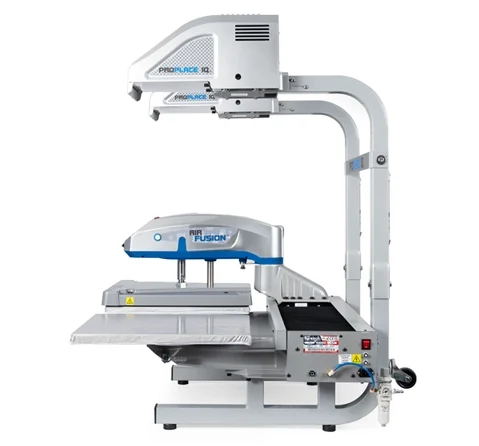

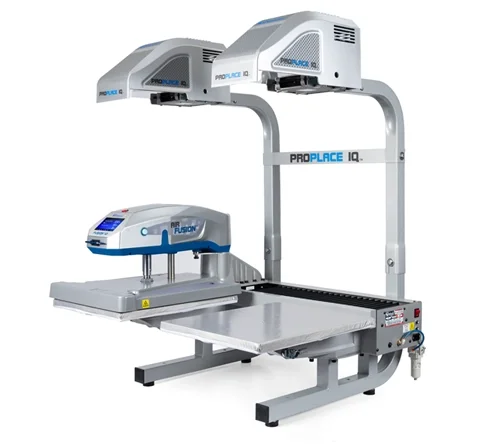

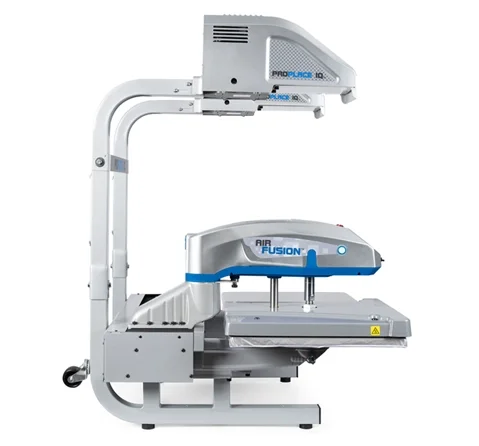

The Dual Air Fusion ProPlace IQ™ improves efficiency and precision printing with a patented projection alignment system. Using the Hotronix Cloud, your design is projected onto the lower platen with the simple click of a button.

The image projection system minimizes misprints with precise alignment. It also speeds up production with quick and accurate transfer placement. Operators can simply align the transfer with the projected image appearing right on the garment and lower platen of the heat press.


  • $8,150.00 for standard Dual Air Fusion IQ®
  • $9,995.00 for integrated Dual Air Fusion ProPlace IQ™


To make sure you're getting a Hotronix®, look for the blue!

Gift with Purchase! Free Marketing Kit!

A $200 crating fee will be applied to this heat press.

Canadian customers please contact Stahls' Canada at 1-800-521-5255 to purchase a heat press.

Estimated lead time is currently 7 business days for this heat press.


Add to Cart
Please select samples or add an Other sample type and try again.

Technical Specifications

  • Operator's Manual
  • 2 platens, each 16" x 20"
  • Quick change latch for quickly changing platens (additional platens available separately)
  • Touch screen control system
  • 4 time and pressure settings
  • Electrical Options:
    120v; 15 amps; 1800 w
    240v; 15 amps; 3500 w
  • Must have a dedicated circuit breaker
  • Comes with lower platen covers
  • User-safe push-button / foot pedal operation
  • Tack Mode
  • Heat-free work surface
  • 120 PSI for heavy-pressure application
  • Auto On / Auto Off
  • Adjustable Shuttle Speed
  • Programmable presets for application
  • Transmission works on HD linear rails, center driven with a rodless air cylinder for smooth, quiet operation
  • Requires air compressor (not included) with minimum 1- horsepower, 8 gallon hold tank, and 3.8 CFM.
  • Die-cast base and top assemblies: strong, lightweight, and corrosion free
  • Proudly made in the USA

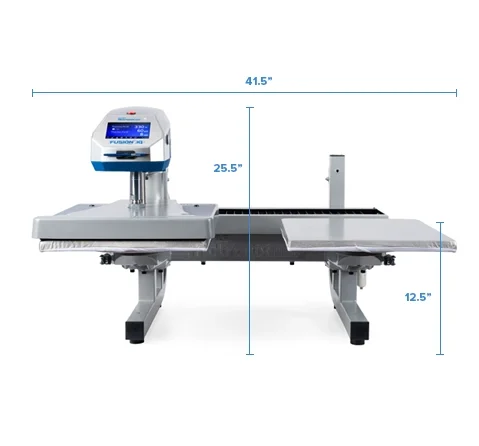

Dual Air Fusion IQ

  • Actual Dimensions: 38" x 38" 26" / 260lbs
  • Shipping Dimensions: 45" x 45" 30" / 410lbs

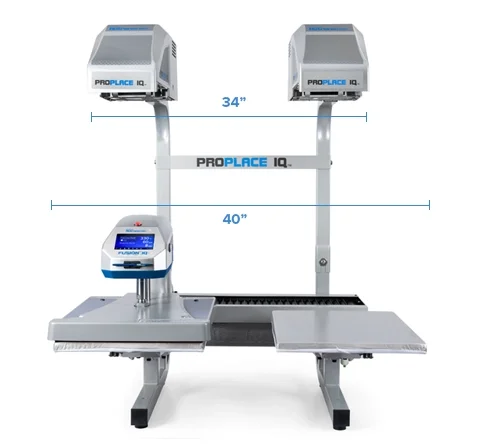

Dual Air Fusion ProPlace IQ™

  • Actual Dimensions: 38" x 38" 50" / 290lbs (assembled)
  • Shipping Dimensions: 45" x 45" 35" / 443lbs

Warranty

  • Heating Element - Lifetime
  • Framework - 5 years
  • Circuit Board - 2 years
  • Parts & Labor - 1 year
